Cycles Server — Runtime budget and action authority for AI agents

Self-hosted server that enforces hard limits on AI agent spend, risk, and tool actions before execution. Reference implementation of the Cycles Protocol (v0.1.25) — a reservation-based control plane for multi-tenant AI agent runtimes.

Drop-in budget governance for OpenAI, Anthropic, MCP servers, OpenAI Agents SDK, LangChain, and custom agent frameworks. Reserve cost up front, commit on success, release on failure — with concurrency-safe enforcement across thousands of agents and tenants.

Cycles enforcing a hard budget cap on a runaway agent loop — see the runaway demo for the full walkthrough.

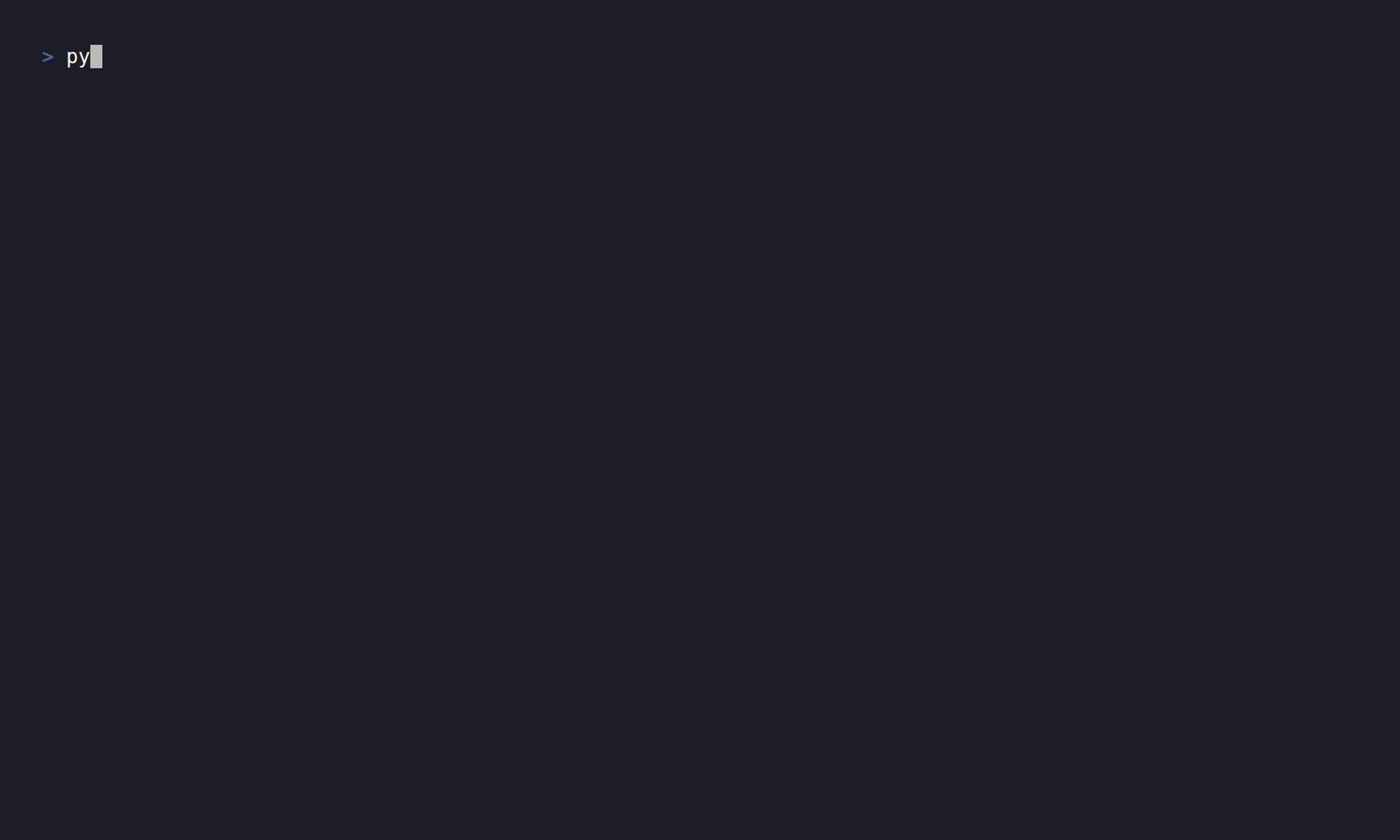

Action authority — Cycles blocking an unauthorized tool call before the side effect lands. Action-authority demo →

Quick Start

One-command quickstart (recommended)

Starts the full stack (Redis + Cycles Server + Admin Server), creates a tenant, API key, and budget, and verifies the full reserve/commit lifecycle:

./quickstart.sh

Prerequisites: Docker and Docker Compose v2+. No Java or Maven required.

Docker (server only)

# Build from source and start (no local Java/Maven required)
docker compose up --build

Server starts on port 7878. Interactive API docs: http://localhost:7878/swagger-ui.html

Pre-built image (no source code needed)

# Download docker-compose.prod.yml, then:
docker compose -f docker-compose.prod.yml up

This pulls the latest image from ghcr.io/runcycles/cycles-server.

Manual build

Prerequisites: Java 21+, Maven, Docker (for Redis)

# 1. Start Redis
docker run -d -p 6379:6379 redis:7-alpine

# 2. Build
cd cycles-protocol-service
./build-all.sh

# 3. Seed a sample budget
./init-budgets.sh

# 4. Run
REDIS_HOST=localhost REDIS_PORT=6379 \
  java -jar cycles-protocol-service-api/target/cycles-protocol-service-api-*.jar

Server starts on port 7878. Interactive API docs: http://localhost:7878/swagger-ui.html

Architecture

HTTP client
    │  X-Cycles-API-Key
    ▼
Spring Boot 3.5 (port 7878)
    │  ApiKeyAuthenticationFilter
    │  Controllers → Repository → Lua scripts (atomic)
    ▼
Redis 7+
    │  event:{id}, delivery:{id}, LPUSH dispatch:pending
    ▼
cycles-server-events (port 7980)
    │  BRPOP → HTTP POST with HMAC-SHA256 signature
    ▼
Webhook receivers

Event emission: Runtime operations emit events to the shared Redis dispatch queue. The events delivery service (cycles-server-events) picks them up and delivers via HTTP POST with HMAC-SHA256 signing.

Modules (under cycles-protocol-service/):

Module	Purpose
cycles-protocol-service-model	Shared request/response POJOs
cycles-protocol-service-data	Redis repository + Lua scripts
cycles-protocol-service-api	Spring Boot controllers + auth

API Endpoints

All endpoints require X-Cycles-API-Key header authentication.

Endpoint	Method	Description
/v1/decide	POST	Evaluate budget decision without reserving
/v1/reservations	POST	Create budget reservation
/v1/reservations	GET	List reservations (with pagination/filters)
/v1/reservations/{id}	GET	Fetch a single reservation
/v1/reservations/{id}/commit	POST	Record actual spend
/v1/reservations/{id}/release	POST	Return reserved budget
/v1/reservations/{id}/extend	POST	Extend reservation TTL
/v1/events	POST	Direct debit without prior reservation (returns 201)
/v1/balances	GET	Query budget balances for scopes

Build

All commands run from the cycles-protocol-service/ directory.

cd cycles-protocol-service

# Full build (compile + unit tests + package)
mvn clean install

# Or use the wrapper script
./build-all.sh

The fat JAR is produced at cycles-protocol-service-api/target/cycles-protocol-service-api-<version>.jar (where <version> is the revision property in cycles-protocol-service/pom.xml — e.g. 0.1.25.14).

Docker Deployment

Two Docker Compose files are provided for different use cases:

File	Use case	Command
docker-compose.yml	Development — builds from source inside Docker (multi-stage build, no local Java/Maven needed)	docker compose up --build
docker-compose.prod.yml	Production / end-user — pulls pre-built image from GHCR	docker compose -f docker-compose.prod.yml up

Both start Redis 7 and the cycles-server on port 7878.

Container images

Pre-built images are published to GitHub Container Registry on each release:

ghcr.io/runcycles/cycles-server:latest
ghcr.io/runcycles/cycles-server:<version>    # e.g. 0.1.25.14

Production deployment & TLS

The Cycles Server listens on HTTP at port 7878 by design — TLS termination is the responsibility of the ingress layer in front of it. The recommended deployment topology:

client → [TLS-terminating reverse proxy] → cycles-server:7878 (HTTP)
                                              ↓
                                     redis:6379 (TCP, password-protected)

TLS termination

Use any TLS-terminating proxy in front of cycles-server. Common choices:

• nginx with Let's Encrypt — minimal config, well-documented
• Caddy — automatic Let's Encrypt + HTTP/3
• Traefik — natural fit for Docker / Kubernetes
• AWS ALB / GCP Load Balancer / Cloudflare — managed TLS at the edge

The cycles-server itself doesn't need to know it's behind a proxy. Standard X-Forwarded-For / X-Forwarded-Proto headers are honored by Spring Boot's defaults.

Why HTTP at the app layer: keeps the container minimal (no cert renewal logic in the app), lets ops centralize TLS posture (cipher suites, HSTS, mTLS) at the proxy, and matches how production Spring Boot services are typically deployed.

Network hardening

Path	Recommendation
Public → reverse proxy	TLS 1.2+ only, modern cipher suites, HSTS enabled
Reverse proxy → cycles-server	Same private network or VPC; not exposed publicly
cycles-server → Redis	Same private network; Redis password set via REDIS_PASSWORD env var; for highest assurance, also enable Redis TLS (Redis 6+ supports it natively)
Admin server (port 7979)	Internal network only — never expose publicly. The admin server is the management plane (tenants, budgets, API keys); compromise here is total.

Required environment variables for production

• REDIS_PASSWORD — never run Redis without one in production
• ADMIN_API_KEY — the bootstrap admin key for the admin server (32+ random bytes recommended)
• WEBHOOK_SECRET_ENCRYPTION_KEY — encrypts webhook subscriber secrets at rest in Redis (32 bytes, base64)

See Configuration below for the full env-var matrix.

Testing

The test suite is split into four categories, each gated by a surefire tag or Maven profile so PR CI stays fast while heavier suites run on demand or on a schedule.

cd cycles-protocol-service

# Unit tests only (no Docker required) — default PR CI feedback loop
mvn test

# Unit + integration tests (requires Docker for Testcontainers Redis)
mvn clean install -Pintegration-tests

# Concurrent load benchmarks (measures throughput + latency percentiles)
mvn test -Pbenchmark

# Property-based concurrent invariant checks (jqwik)
mvn test -pl cycles-protocol-service-api -am -Pproperty-tests

Integration tests

*IntegrationTest.java classes use Testcontainers to spin up a Redis instance automatically. Excluded from the default build; enabled via the -Pintegration-tests Maven profile.

Property-based tests

jqwik-driven property tests that force concurrent interleavings and assert system-wide invariants. Four property tests ship today:

Test	Invariants
BudgetExhaustionConcurrentPropertyTest	Under REJECT overage policy: no overdraw, no dual-terminal states, no leaked ACTIVE reservations after sweep.
OverdraftConcurrentPropertyTest	ALLOW_IF_AVAILABLE never creates debt; ALLOW_WITH_OVERDRAFT respects overdraft_limit; ledger invariant (allocated = remaining + spent + reserved + debt) holds under contention.
ScopeAttributionConcurrentPropertyTest	Multi-scope spend attribution: spent[level] equals Σ charged_amount at every level for scope chains of depth 1–6.
AuditLogCompletenessPropertyTest	1:1 mutation↔audit-entry on admin-driven releases; dual-index consistency (audit:logs:_all + audit:logs:{tenant}); required fields including metadata.actor_type=admin_on_behalf_of.

Tagged @Tag("property-tests") and excluded from default PR CI. Run locally with -Pproperty-tests; a nightly GitHub Actions workflow (.github/workflows/nightly-property-tests.yml) runs at 06:00 UTC with deeper coverage.

Try count is configurable:

Mode	Command	Try count	Runtime
PR-speed default (from jqwik.properties)	mvn test -Pproperty-tests	20	~20 s
Nightly CI (5× coverage)	mvn test -Pproperty-tests -Djqwik.defaultTries=100	100	~2 min
Manual deep run	mvn test -Pproperty-tests -Djqwik.defaultTries=500	500	~10 min

The property annotation deliberately does not set tries — the count comes from cycles-protocol-service-api/src/test/resources/jqwik.properties (defaults to 20) and can be overridden with -Djqwik.defaultTries=<N>. An annotation literal would win over the system property and silently ignore the override.

Reproducing a failure: jqwik prints a seed = <number> line on failure. Pass it back via -Djqwik.seeds.tries.default=<number> to replay the exact same interleaving against the fixed code.

Configuration

Variable	Default	Description
REDIS_HOST	localhost	Redis hostname
REDIS_PORT	6379	Redis port
REDIS_PASSWORD	(empty)	Redis password
cycles.expiry.interval-ms	5000	Background expiry sweep interval (ms)
JAVA_OPTS	(empty)	JVM options (e.g. -XX:MaxRAMPercentage=75 -XX:+UseG1GC)
LOGGING_STRUCTURED_FORMAT_CONSOLE	(unset)	Set to ecs or logstash for JSON logging in production
redis.pool.max-total	128	Max Redis connections
redis.pool.max-idle	32	Max idle Redis connections
redis.pool.min-idle	16	Min idle Redis connections
WEBHOOK_SECRET_ENCRYPTION_KEY	(empty)	AES-256-GCM key for webhook signing secret encryption at rest (base64, 32 bytes). Must match admin + events services. Generate: openssl rand -base64 32
EVENT_TTL_DAYS	90	Redis TTL for event:{id} keys (days)
DELIVERY_TTL_DAYS	14	Redis TTL for delivery:{id} keys (days)

Webhook Event Emission

The runtime server emits events to the shared Redis dispatch queue for:

• reservation.denied — reserve or decide returned DENY
• reservation.commit_overage — commit actual exceeded reservation estimate
• reservation.expired — reservation TTL expired without commit/release (via background sweeper)
• budget.exhausted — remaining budget reached 0 after an operation
• budget.over_limit_entered — scope entered over-limit state (debt > overdraft_limit or ALLOW_IF_AVAILABLE cap)
• budget.debt_incurred — commit/event created debt via ALLOW_WITH_OVERDRAFT

These events are delivered by cycles-server-events to webhook subscribers via HTTP POST with HMAC-SHA256 signing. Event emission is non-blocking — failures are logged but never affect the API response.

If the events service is down: Events and deliveries accumulate in Redis with TTL (90d/14d). When the events service restarts, deliveries older than 24h are auto-failed. The admin and runtime servers continue operating normally.

Monitoring

Health Check

GET /actuator/health

Prometheus Metrics

GET /actuator/prometheus

Exposes JVM, HTTP, and Spring Boot metrics in Prometheus format. Both endpoints are unauthenticated. Configure your Prometheus scrape target to http://<host>:7878/actuator/prometheus.

Domain counters (v0.1.25.11+)

In addition to Spring Boot's auto-emitted http_server_requests_seconds, the service exposes seven domain-level counters under the cycles_* namespace (reserve / commit / release / extend / expired / events / overdraft). Operators can alert on denial rates, overdraft incidence, and per-tenant activity without reverse-engineering it from HTTP status codes.

Full metric inventory, tag semantics, ready-to-paste Prometheus alert rules, SLO definitions, and an incident playbook live in OPERATIONS.md.

Documentation

• CHANGELOG.md — release notes for downstream consumers (Docker / JAR)
• OPERATIONS.md — operator runbook: metrics inventory, alert recipes, SLOs, incident playbook
• AUDIT.md — engineering history and rationale for each release
• Cycles Documentation — full docs site
• Deploy the Full Stack — deployment guide with server setup
• Server Configuration Reference — all server configuration options
• cycles-protocol-service/README.md — core concepts, authentication, error codes, and the Redis data model
