blaster

[aidenpae]

I used EasyEDA Pro, so the files are different than what the README says for Std. I also could not get it to export a 3D model without throwing a network error about the component models.

Submission Checklist:

• I am a current high school, middle school, or home schooled student.
  • I am 18 or under
  • I have filled out the verification form (do this for every pull request)
• I have joined the #electronics channel on Slack
• I made this board from scratch, even if I followed a tutorial
• I have followed the directions in README.md
  • Created a folder under onboard/projects
  • Filled out TEMPLATE.md as README.md inside your project folder
  • Uploaded gerber.zip and schematic.pdf inside your project folder
  • Created a folder called src and uploaded design files

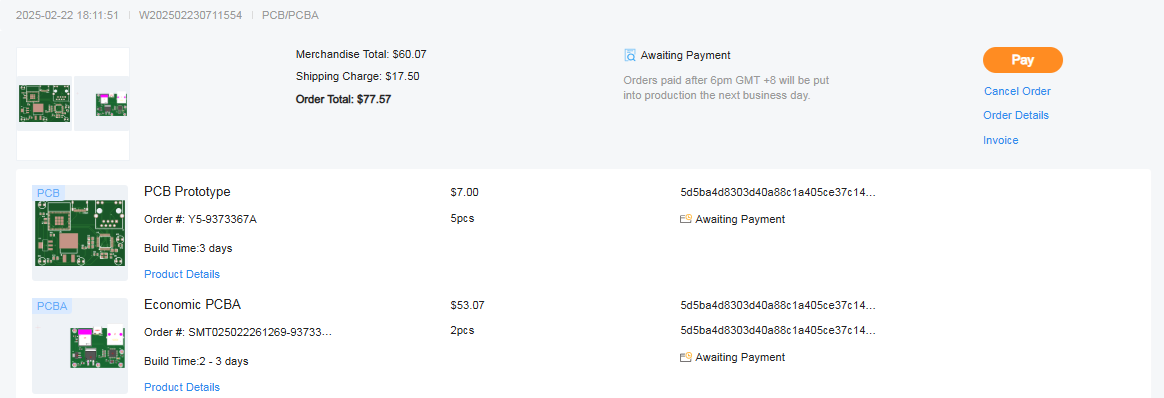

  • Uploaded screenshot of PCB order called cart.png with all costs included
  • I am ordering the smallest batch size (ie. JLCPCB's smallest order is for 5 boards)
  • If outside the US I've checked that I can afford the customs charges in my country (which isn't covered by the grant)

---

• (Optional) This project is from a tutorial¹.
• (Optional) This project is for OnBoard Live².
• (Optional) This project is for Hacky Holidays³.
  • I have included the bom.csv (Bill of Materials) file with the appropriate JLCPCB/LCSC Part numbers in the /src directory
  • I have included the positions.csv file in the /src directory
  • I have checked Hacky Holidays in the verification form and selected the parts I will require
  • I have submitted a request for Hand Assembly if my PCB is complex, has a high extended component count and/or requires Standard Assembly
• (Optional) I'm in a FIRST (FRC, FTC, FLL, etc.) team. The number is: ____

Footnotes

1. Projects from a tutorial are 100% fine! We just want to ask so we can count how people are using tutorials. ↩

2. OnBoard Live is a special version of OnBoard where you can earn more money for designing advanced boards. Check out the #onboard-live channel on our Slack! ↩

3. Hacky Holidays is a limited-time PCB event, design a holiday-themed PCB this Winter, and get it shipped. ↩

[prophetorpheus]

Hi, I'm Orpheus Leap! Here to help you review your PR.

projects/blaster:

Required files

✅	README.md	A description of your project
✅	cart.png
✅	gerber.zip
✅	schematic.pdf	Manually check schematic.pdf
❌	Source files - Unknown	No source files found. Please make a directory called 'src' and put your gerbers and upload your source files there. There must be two files, one for the schematic and one for the PCB. .

You can view a render of your board over on gerber.zip/2d!

Happy OnBoarding!
_{This bot is a simpler helper for common submission types. If there's an error with this, please point it out and someone from the OnBoard team will look at it manually.}

[aidenpae]

I uploaded the project into seperate files - the individual board and schematic files and the combined one are identical in content

[maxwofford]

This board is sick! I love that you threw something together you can use in your home.

[maxwofford]

It's fine the bot is complaining about .epro files– I'll file an issue to fix it.

[maxwofford]

I just sent your grant out! https://hcb.hackclub.com/grants/j8IKJN. use it to buy your board and post pics of it once it arrives
